Studiosystem

Studiosystem

Not only a Machine. A System.

The Studio System from Kolb Design Technology is characterised by a highly collaborative and innovative working environment
with a wide range of products and applications.

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12

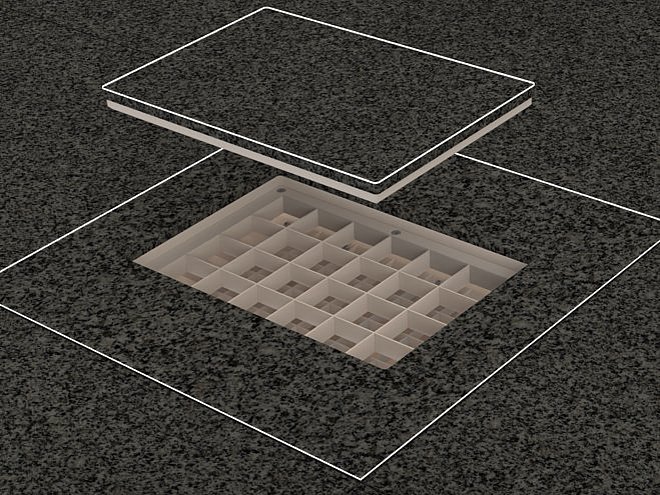

Kolb Clay Box

1 - Kolb Clay Box

  • Floor integrated clay chip extraction
  • A clean studio floor in minutes after milling
  • Perfect for clay recycling

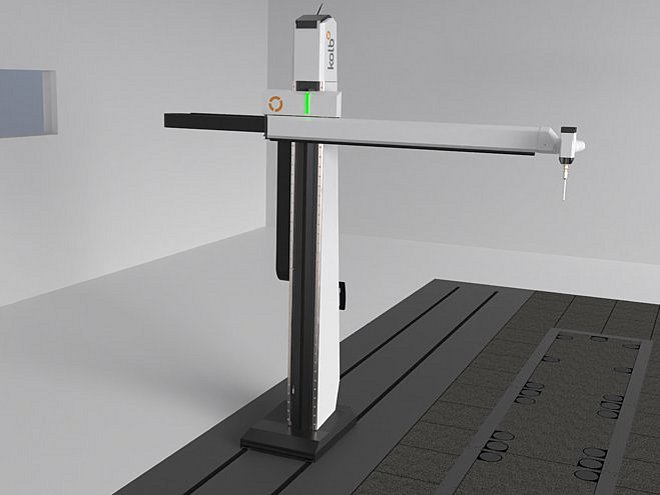

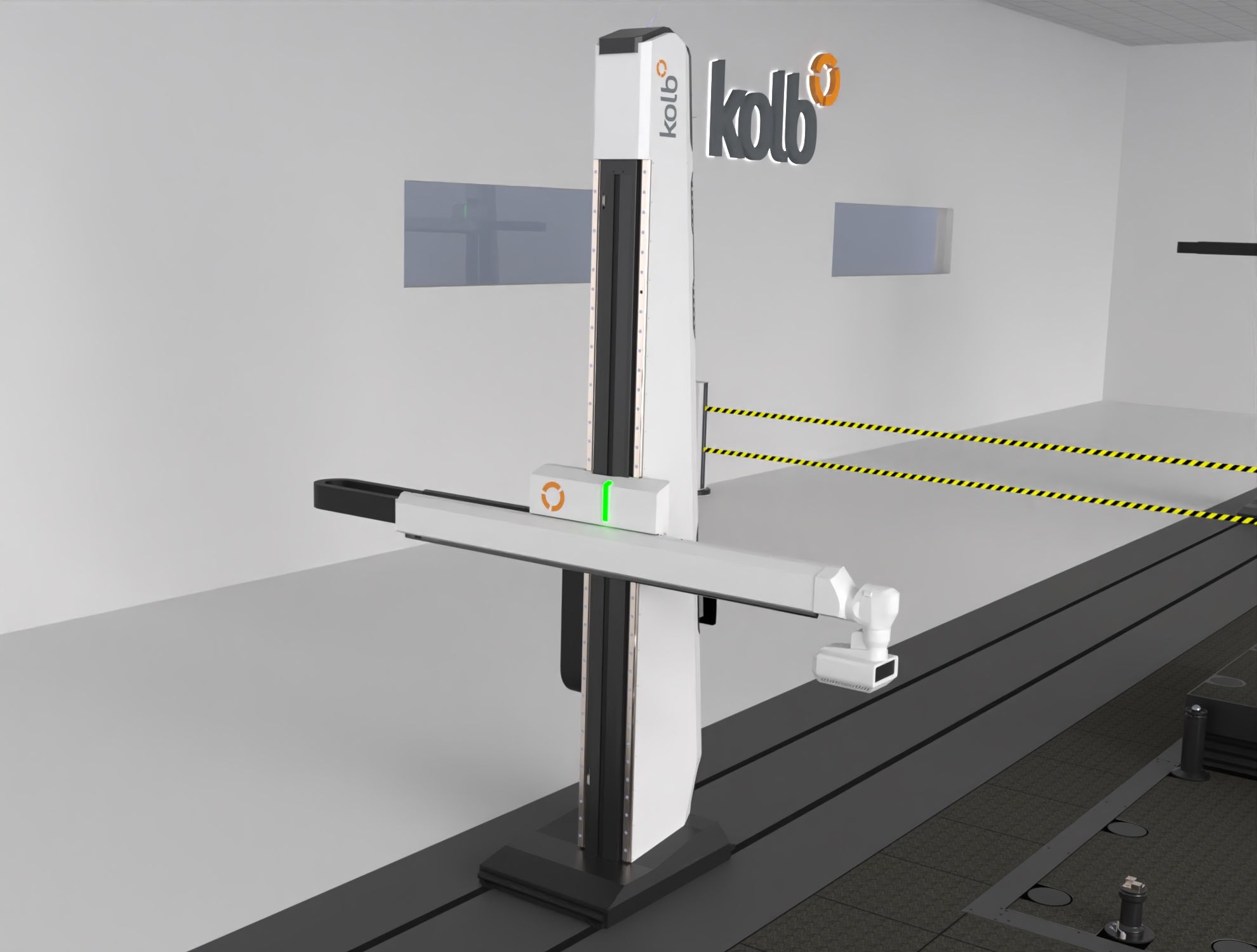

Kolb ConceptLine Evo

2 - Kolb ConceptLine Evo

  • Feed rate: 40 m/min
  • Clay and block material
  • Spindle 1 kW (Eco mode) / 2.2 kW (Power mode)
  • Spindle 2 kW (Eco mode) / 3.6 kW (Power mode)

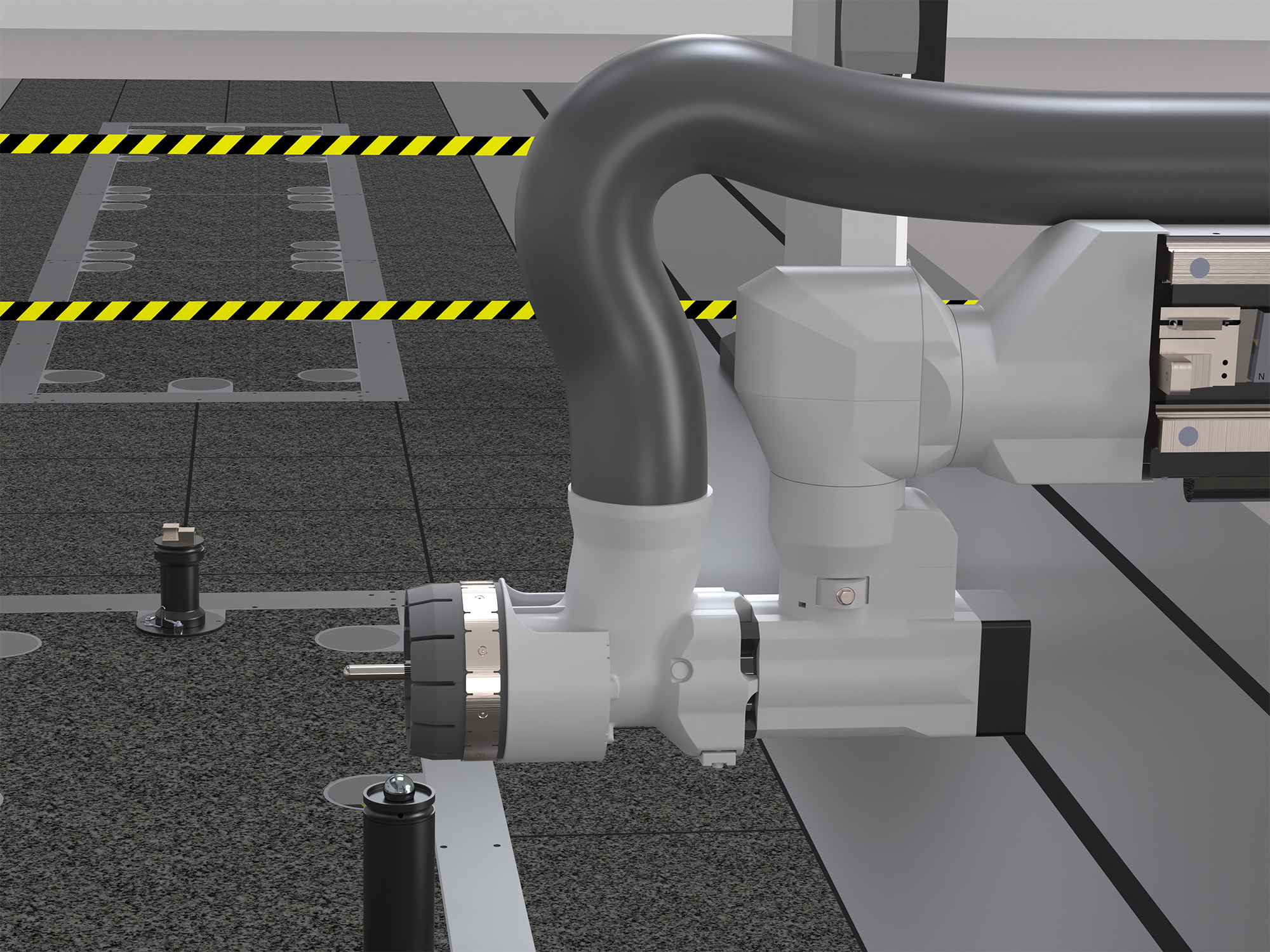

Kolb Extraction System

3 - Kolb Extraction System

  • Direct extraction of clay and other materials
  • Dust-free milling of foams and other materials

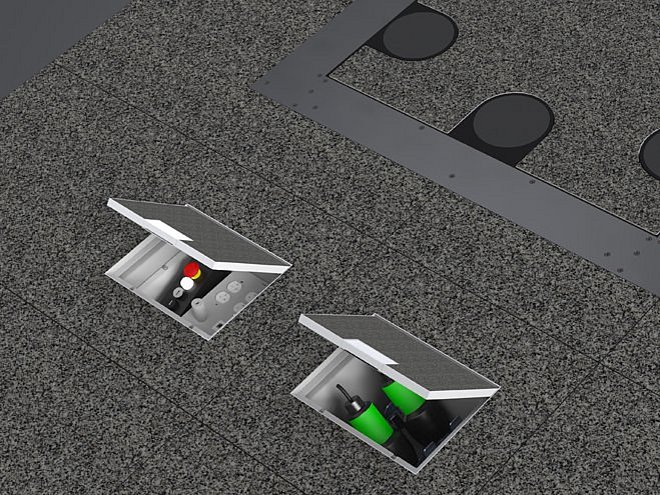

4 - Kolb Floor Box

   Floor box for

  • Lifting table control unit
  • Power outlets, pressurised air,
    network connectors
  • Heat guns and other hand tools

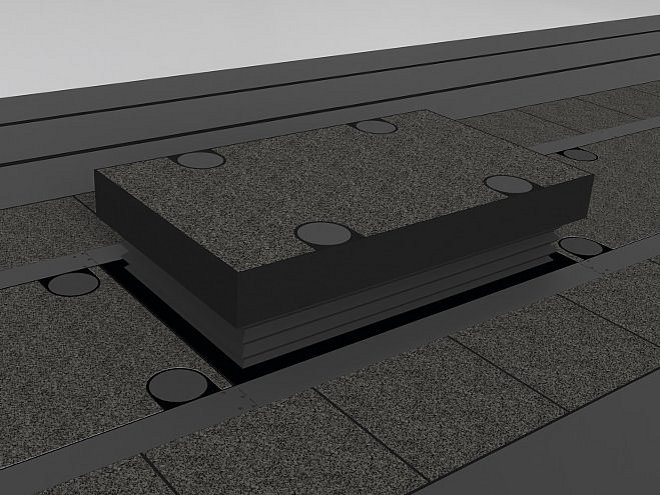

5 - Kolb Lifting Table / Turning Table

  • Floor integrated lifting table, manual or motoric turn function optional
  • Pre-positioning system for safe lifting and safe placement of the models on the locator pins available
  • Grid and interface design according to customer specification

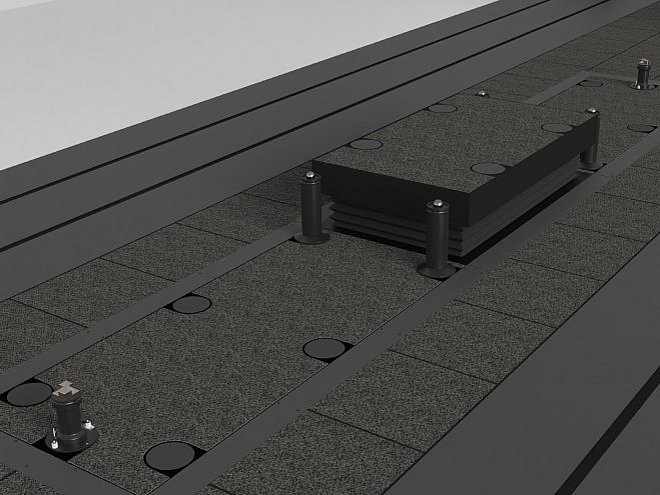

6 - Kolb Lifting Table / Model Support System

  • The ideal combination, also available
    separately
  • Grid and interface design according to
    customer specification

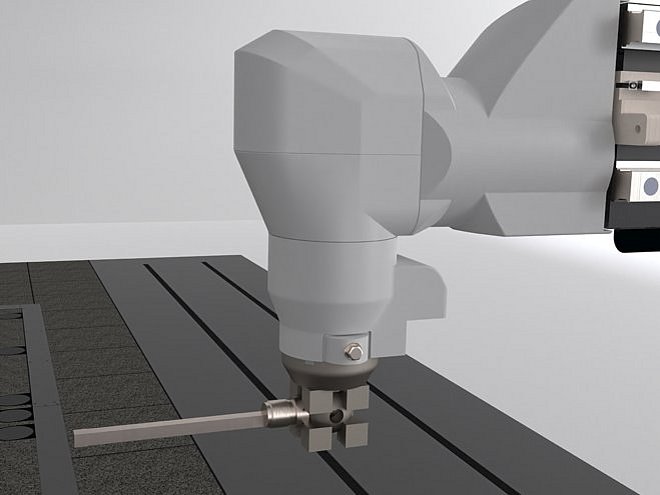

7 - Kolb Adaption Cube

  • Adaption cube for fixation of probes and
    scribing tools
  • Mounted on the zero point clamping system
    of the two-axis head
  • Changing to milling spindle or scanner in
    30 sec without shift of the coordinate system

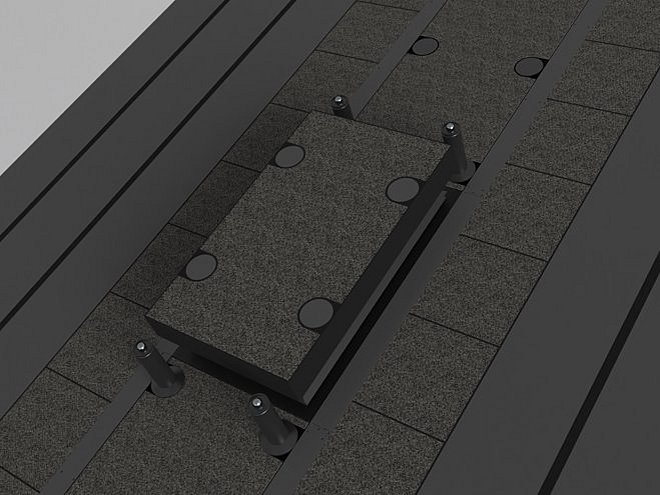

8 - Kolb Pin Locators

  • Model locators for repeatable accuracy
  • Modular design for easy adaption of interfaces to customer-specific reqirements
  • Various heights by change of middle section

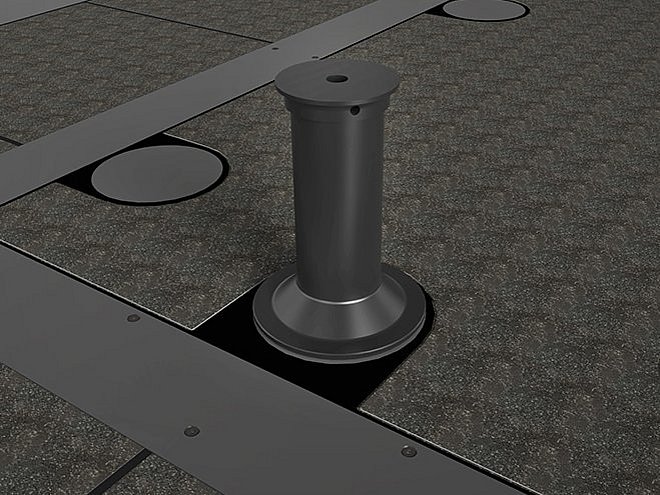

9 - Kolb Datum Pin

  • Modular datum pin
  • Measuring bobs changeable

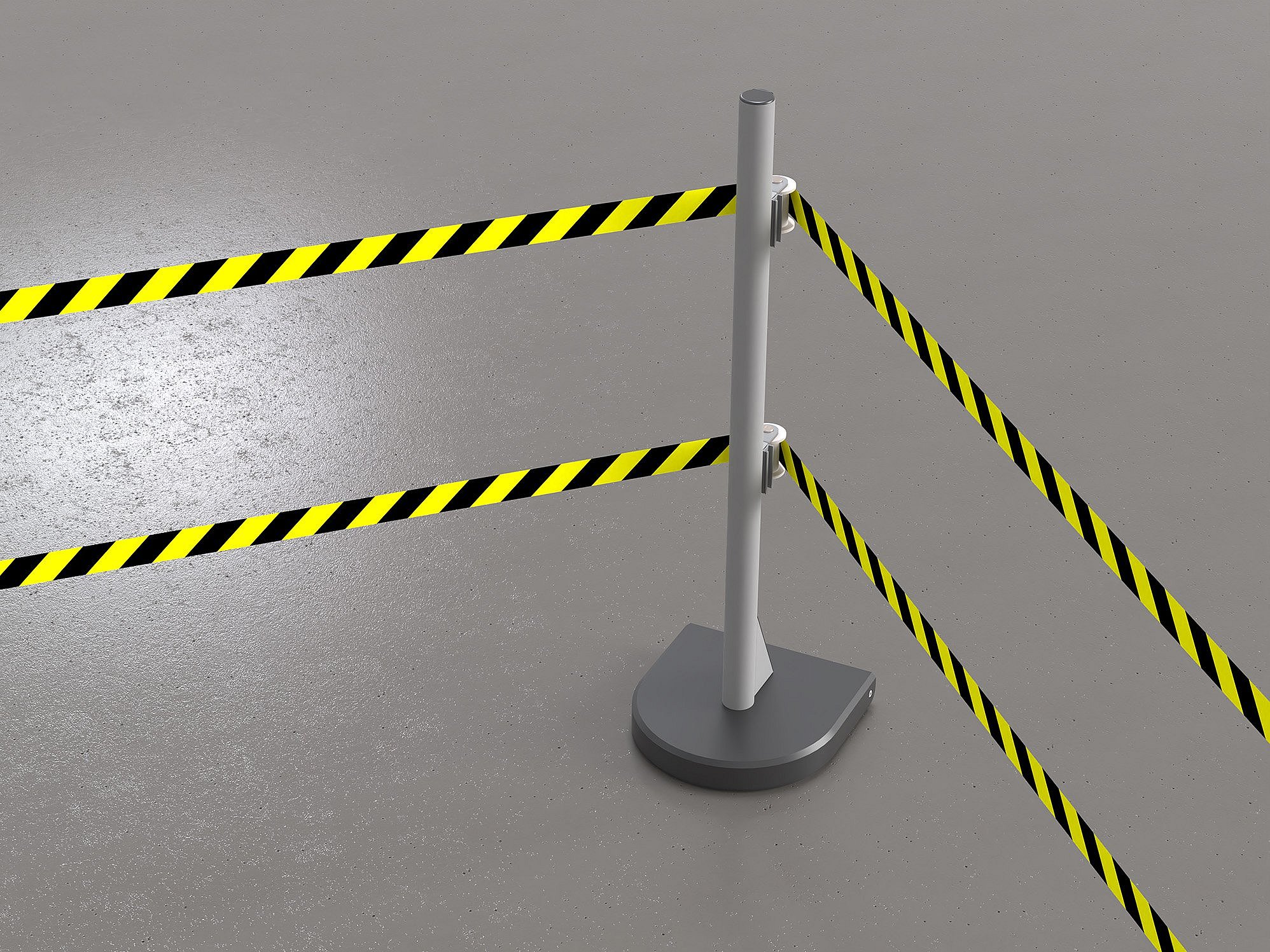

10 - Kolb Safety System

  • For a safe and compliant machine operation
  • Sensor monitored barrier tapes
  • No false tripping by flying chips as with
    some other systems
  • Advanced dynamic collaborative safety systems available on request
  • Due to clearly visible enclosure no false
    tripping by unintended entering of the safety area

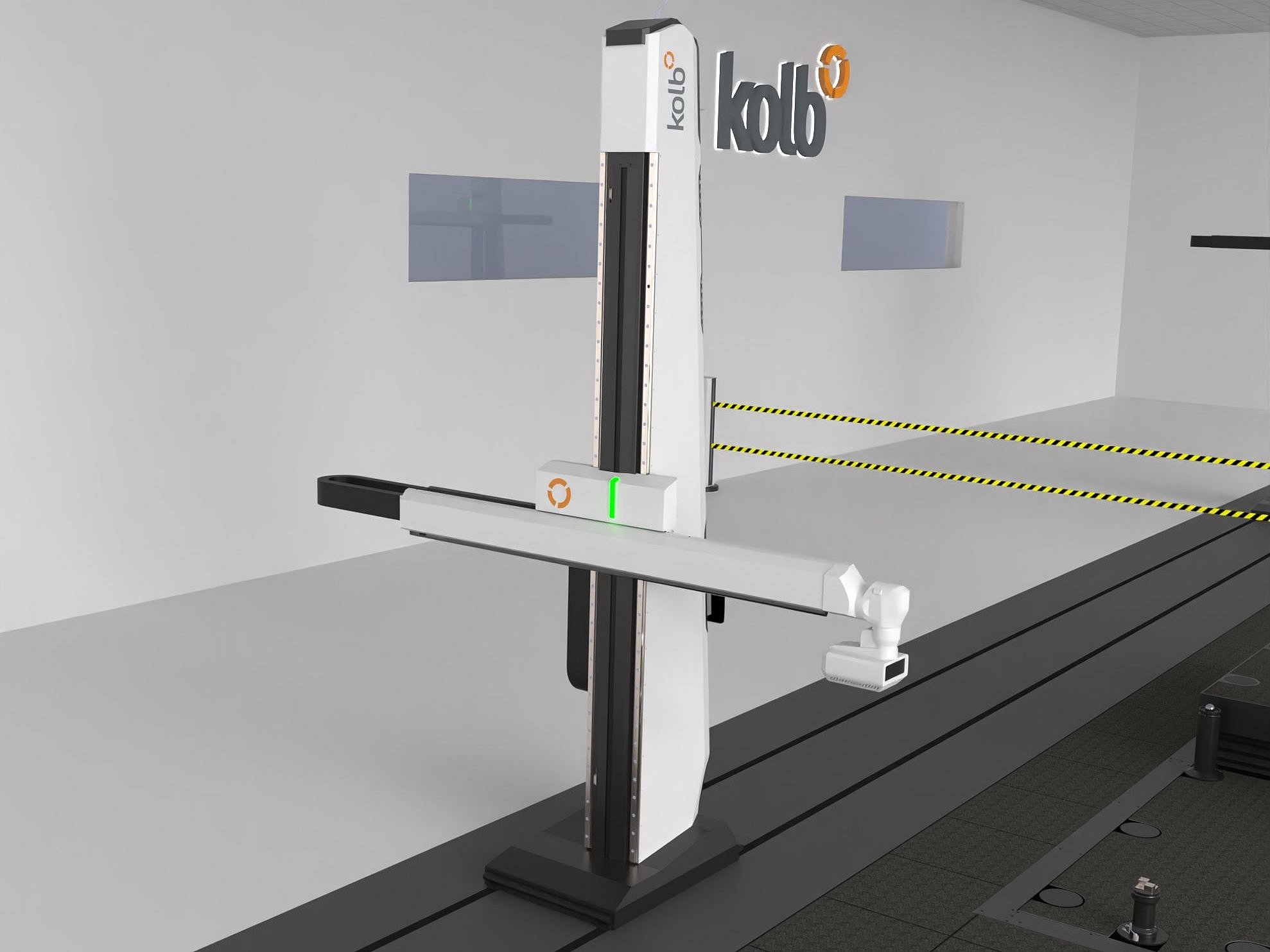

11 - Kolb Scanning System

  • Mounted on the zero point clamping system
    of the two-axis head
  • Changing to milling spindle or adaption cube
    in 30 sec without shift of the coordinate
    system

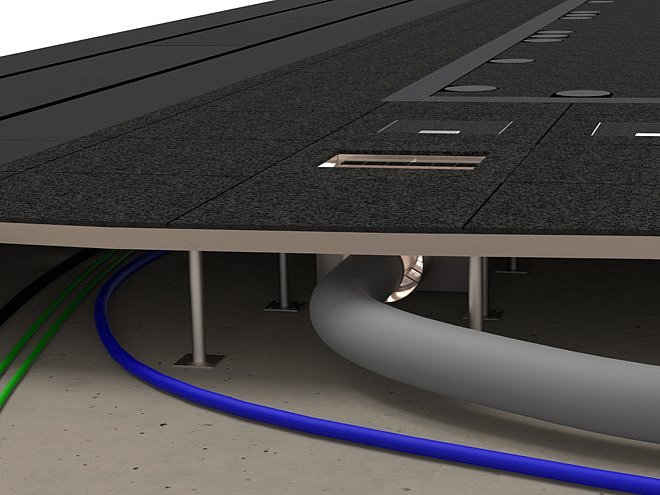

12 - Kolb Raised Floor System

  • Heavy duty (Stringo plus models up to 4.5 tons) false floor system for perfect integration of all
    in-floor installations and lines in a single
    foundation pit
  • In most cases more efficient than single pits with conduits
  • Easy to clean and durable surfaces in different materials available
